Description

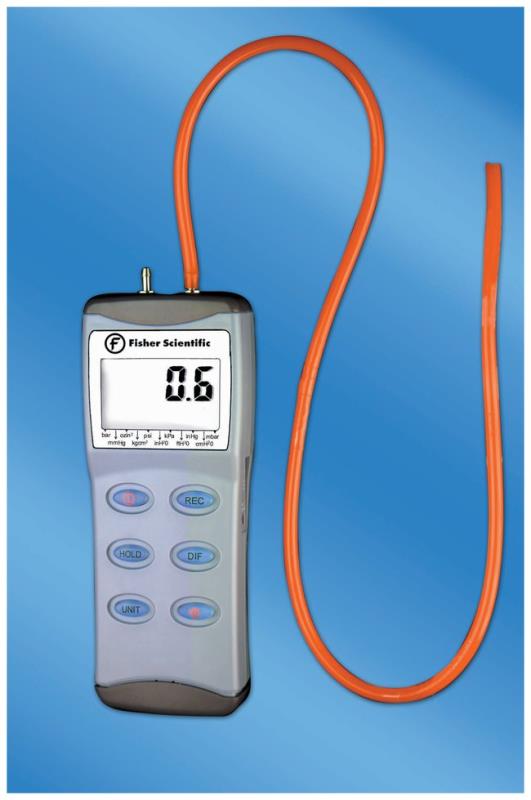

• Portable unit measures and displays differential pressure/vacuum in: psi, mbar, bar, cm/H2O, inch/H2O, feet/H2O, mm/Hg, inch/Hg, kg/cm2, oz./inch2 and kPa
• Response time: 0.5 sec.
• Accuracy: ±0.3% of full-scale between 0 and 50°C
• Readings are shown on backlit display with 0.625 in.H (1.6cm) digits visible from 6 ft. Feature DATA HOLD button to freeze display and capture readings
• Memory key recalls highest and lowest readings
• Differential feature calculates the difference between two readings
• Zeroing is achieved at the touch of a button
• Display times up to 99 hours, 59 minutes, 59 seconds which allows the user to record when maximum or minimum pressure is achieved

Printing Model

• Captures and stores up to 99 readings at the press of a button
• Datalogging permits capturing and storing up to 12,000 readings at intervals as short as 1 second or as long as 2 hours; prints sample number, current reading, date and time
• Manual memories and datalogger memories print without the need for a computer
• Computer output allows manual memories, datalogger memories and current programmable capturing to be streamed to a PC computer
